TECHNICAL SPECIFICATIONS OF

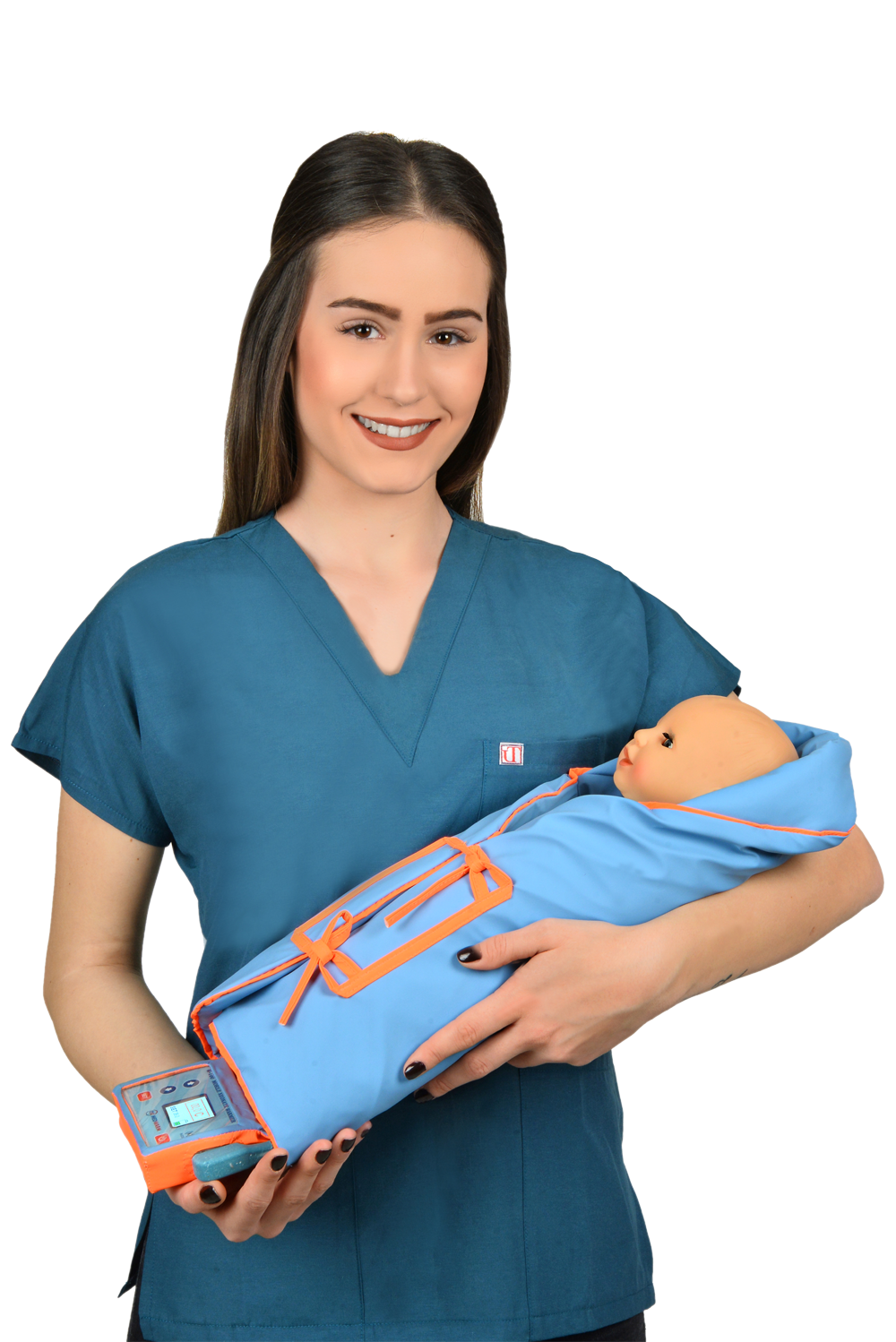

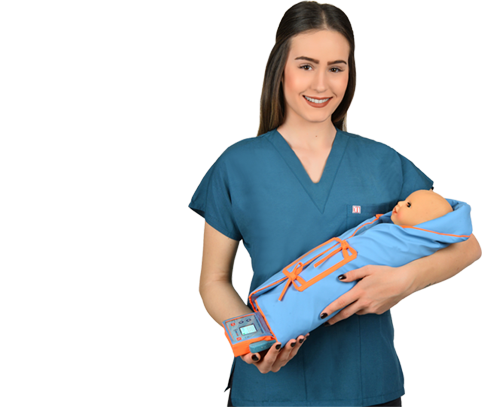

NEONATAL PORTABLE WARMING SYSTEM W-100
1. Neonatal Portable Patient warming systems used to prevent babies entering into Hyperthermia during transportation.
2. Its manufactured with high quality carbon fiber technology.
3. Surface of the Swaddling Blanket is uniformly warmed. Its also consist of numerous temperature sensors, to have homogenous warming.
4. It has a quick warming time of less than 10 minutes.
5. Control unit is portable and light weight that is less than 0,5 kgs (with battery), and silent
Control unit:
- It has a Temperature Output range of 32 deg C to 39 deg C with an increment in steps of 0.1 deg C.
- It has battery life of at least 4 hours.
- It consists of LED display for easy viewing from long distance.
- It displays both current and targeted temperatures.
- It has a bar display to show the amount of power in percentage being consumed by the unit.
- It displays Audio-Visual Alarms in case of any fault.
6. Various Audio-Visual Alarms are present:
- a) Pad alarm : Mattress or blanket is not connected to controller or there is connection trouble.
- b) Inop Alram : Warming fail due to a technical reason.
- c)High Temperature Alarm : Temperature is 1,5 deg C adjusted measured value or over 40 deg C.
7. Over Temperature Safety Cut available at 42 deg C.
8. It easily cleaned using standard operation room disinfectants.
9. Disposable covers also available in case of highly infectious patients.
10. It has low energy consumption of only 12V DC.
11. It is ISO 13485 and CE certified.
